THE PREDATOR IS LURKING

Gator-X

Have you decided to take the next step in your caravanning journey? If you have tackled the corrugations and windy back roads and decided to upgrade to a compact full off caravan, then look no further then the range topping Gator X from JB Caravans. The Gator X is one tough predator fitted with under body armour, nudge bars, recovery points, solar and more. This is complimented by a soft luxurious high end interior to unwind in. Featuring a single axle, modern finishing, high grade appliances, mini washer and exclusive colour ranges the Gator X is truly something special.

Gator-X

We use only the highest quality construction

JB Caravans Construction

Using only Australian 3.2mm thick tube steel, JB Caravans manufactures all chassis in its own facility. Our engineered chassis are built to handle the fit for purpose conditions that our various caravans are built for in Australian tough conditions.

JB uses only independent suspensions on our models which are rated for Australia’s tough conditions. Whether that be for on – road use, semi off – road, off road. Our tested suspensions include Alko and Cruisemaster. The Gator X utilises a 2.8T Airbag Cruisemaster suspension.

Offering one of Australia’s most comprehensive 3 year warranty’s, our warranty includes caravan structure, electrical and plumbing. The warranty is a fit for purpose warranty including off road

An extremely rigid smooth alucomp is used on the Gator X giving it a sleek and modern finish. This is coupled with a strong checkerplate to keep your semi – off road caravan protected on your travels.

Fitted with Alko – ESC as standard as well as electric brakes and break away switch you can rest assured that you are safe when towing the Gator X. European windows as well as a security mesh are also fitted for your safety.

A range of options and sizes are available on this van including slide out kitchen and bike rack.

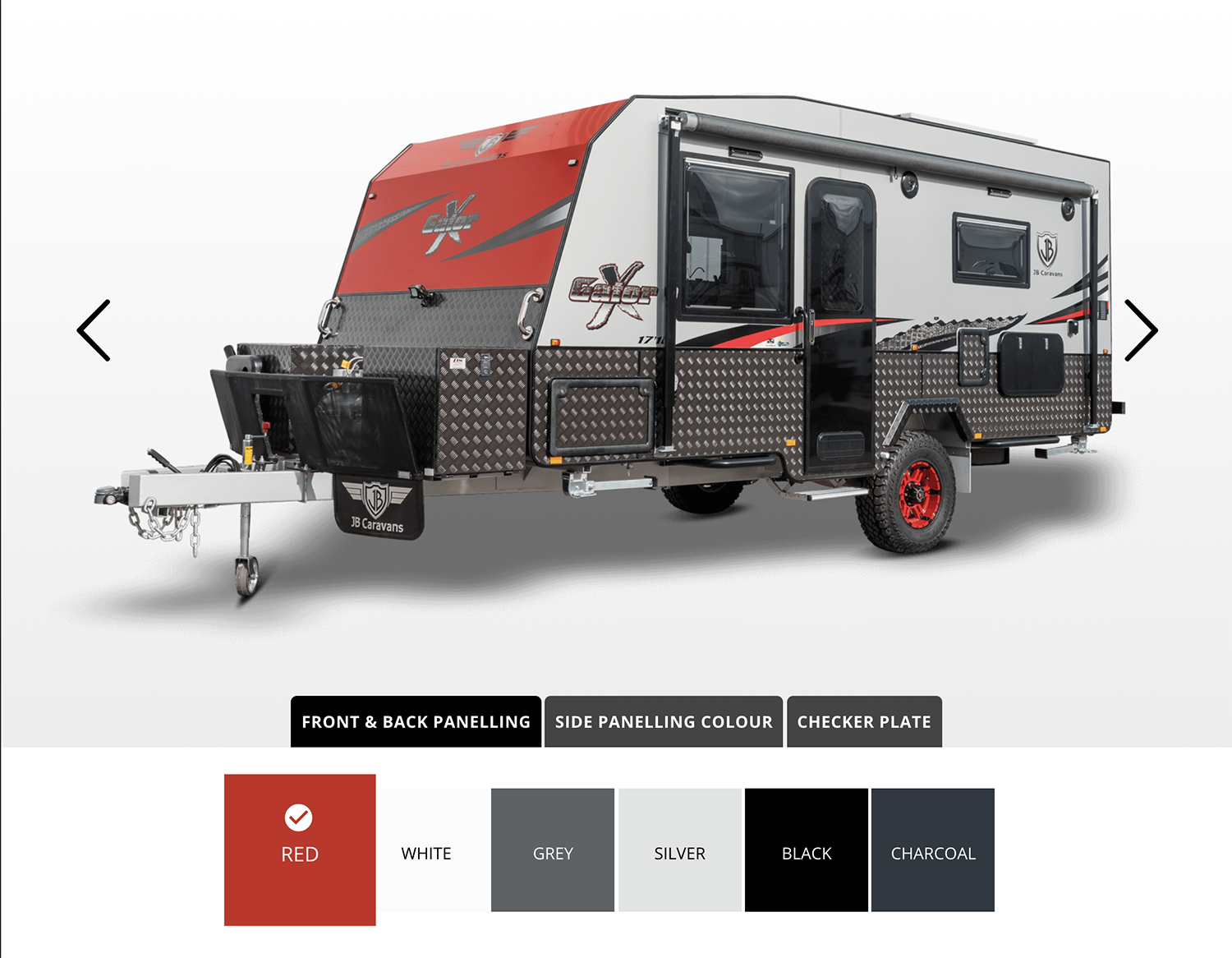

Build Your Own

Gator X

A new predator has entered the water in the form of the Gator by JB Caravans. The Gator would be in its natural state camped by a billabong under the shade of a tree, anywhere in Australia. As its name implies it has a tough skin, that is complimented by a soft luxurious interior to unwind in. Featuring a single axle, modern finishing, high grade appliances, mini washer and exclusive colour ranges the Gator sure packs a bite. The JB Gator is a natural born thriller.

Build your Own

Take a look inside

TTake a virtual look inside our incredible Gator X Caravan featuring lightweight furniture and the highest quality finishing and appliances.

Enjoy the JB Caravan Lifestyle in our highly detailed Virtual Reality room. Our configurator provides you with a simulation you wouldn't normally experience from home. Simply download and run the configurator. Our 3D Configurator should run smoothly on all modern Windows PC's and laptops. Keep an eye out for regular layout updates.

3D Configurator
Gator-X

Interior

JB Caravans pride ourselves on our high quality interior finishes, we use only the best in materials to give our caravans a luxurious finish and unsurpassed quality. We employ a highly skilled workforce as well as using CNC technology and edge banders to ensure a quality product.

Build your Own

Features & Colours

Customise Your Choice

Gator-X

Dimensions

  • Overall Body Length: 7.3m
  • External Width: 2.48m
  • External Height: 3.1m
  • Internal Height: 1.98m
  • Tare: 2250 - 2300
  • Tow Ball: 140kg - 150kg
Build your Own
Gator-X

Dimensions

  • Overall Body Length: 7.8m
  • External Width: 2.48m
  • External Height: 3.1m
  • Internal Height: 1.98m
  • Tare: 2320 - 2370
  • Tow Ball: 210kg - 230kg
Build your Own
Gator-X

Dimensions

  • Overall Body Length: 7.6m
  • External Width: 2.48m
  • External Height: 3.1m
  • Internal Height: 1.98m
  • Tare: 2320 - 2370
  • Tow Ball: 210kg - 230kg
Build your Own
Gator-X

Dimensions

  • Overall Body Length: 7.6m
  • External Width: 2.48m
  • External Height: 3.1m
  • Internal Height: 1.98m
  • Tare: 2370 - 2400
  • Tow Ball: 210kg - 220kg
Build your Own
Gator-X

Dimensions

  • Overall Body Length: 7.3m
  • External Width: 2.48m
  • External Height: 3.1m
  • Internal Height: 1.98m
  • Tare: 2250 - 2300
  • Tow Ball: 140kg - 150kg
Build your Own

Specifications

Internal

  • Premium Laminate benchtops
  • Pillow top leather upholstery
  • Footrests
  • Splash backs in a range of colours
  • Innerspring Queen bed mattress
  • Slatted bed frame on gas struts
  • One piece vinyl flooring
  • Piano Hinges throughout
  • Lightweight doors
  • Buttonless door handles
  • Full height bed head

Appliances

  • 218L Compressor Fridge
  • Fusion 755 + iPod Dock
  • 24″ Smart TV
  • Wineguard antenna
  • Gas/Electric Oven
  • Touch control range hood
  • Microwave
  • Smoke alarm
  • Fire extinguisher
  • Truma Air-con/heating
  • Wall mounted washing machine

External

  • External speakers
  • Picnic table
  • Stucco walls
  • Midi hatch
  • Roll out awning
  • Higher checker plate
  • Triple lock entry door
  • Skylight
  • European double glazed windows
  • Nudge bars + recovery points
  • Spare wheel
  • 2 x Separate toolboxes with slide out

Chassis

  • Spugal chassis
  • 4 inch mainframe
  • 6 inch A-Frame
  • 2.8T ATX airbag suspension
  • Electric brakes
  • DO35 recessed coupling
  • Cooper tyres
  • 16″ anodised rims
  • Gal lined sheet underfloor
  • Double tool box slideout
  • Alko – ESC
  • Single axe
  • Stone deflector & guard

Plumbing

  • Tap on A-Frame with protector
  • Ceramic bowl toilet
  • Flick mixer taps
  • Ceramic basin
  • External gas bayonet
  • 12V water pump
  • 2 x 9kg gas bottles
  • Swift 28L Gas/Electric HWS
  • Grey water tank
  • External shower
  • Plumbing protection under van

Electrical

  • 200 Amp Enerdrive BT Lithium battery with blue tooth monitor
  • 60 Amp Enerdrive battery charger
  • 40 Amp + Enerdrive DC-DC Charger with solar regulator
  • Alloy step with light
  • Reverse Camera + monitor
  • 2 x 160W solar
  • LED rail light above sinks
  • Anderson plug
  • Car break away switch
  • 2 x Battery boxes
  • Entertainment hatch
  • Solar regulator
  • 600W inverter
